HNK HB-110 Horizontal Table type CNC Turning Machine

Sorry - this product is no longer available

Manufacturer: Hankook
SKU: hankookhb110
Manufacturer part number: HB110
Vendor:

✔ Operates is research, development and manufacture of advanced products for defense industry.
✔ Located in Turkey

Warehouse: Turkey

The HNK HB-110 is a heavy-duty, 4-axis CNC Horizontal Machining Center manufactured in 2003. This machine is currently assembled, in active working condition, and free of malfunctions. Equipped with a FANUC Series 16-M control system, it features a spacious 1400 x 1600 mm rotary table capable of supporting up to 7 tons. With generous X, Y, and Z travels of 1800 x 1500 x 1300 mm, an extended W-axis travel of 650 mm, and a 90-tool Automatic Tool Changer, it is designed for high-precision, heavy-duty industrial manufacturing. It is suitable to be dismantled and transported.

Inspection:

The majority of the equipment listed for sale is used and may contain defects that are not detectable immediately. Prior to making a purchase, buyers may inspect the property and the inspections should be planned ahead of time. Please contact Stokarti to set an inspection appointment.

Special Guidelines:

All property is offered for sale 'AS IS, WHERE IS'. Regarding the suitability or merchantability of the goods offered for sale, Stokarti makes no warranty, guaranty or representation of any kind, either express or implied. Please be aware that all sales are final once the products are removed.

Statement of Warranty:

The seller guarantees to the buyer that the provided property will match its description. Any claim for misidentification must be submitted before the property is removed. If seller verifies that the asset, property does not match the description of the property, seller will keep the asset and return any payments made. The seller's obligation is limited only to the actual purchase price of the asset.

Used Hankook HB-110 CNC Horizontal Machining Center

The HNK HB-110 is a heavy-duty, 4-axis CNC Horizontal Machining Center manufactured in 2003. This industrial boring mill is currently assembled, in active working condition, and free of malfunctions. Equipped with a highly reliable FANUC Series 16-M control system, it features a spacious 1400 x 1600 mm rotary table capable of supporting up to 7 tons.

With generous X, Y, and Z travels of 1800 x 1500 x 1300 mm, an extended W-axis travel of 650 mm for deep boring operations, and a 90-tool Automatic Tool Changer (ATC), it is designed for high-precision, heavy-duty manufacturing. The machine is fully suitable to be dismantled and transported to your facility.

Product Overview & Technical Specifications

General Machine Information
Brand / ModelHNK HB-110
Year of Manufacture2003
Machine Number03023
Number of Axes4 Axes (X, Y, Z, W + Rotary B)

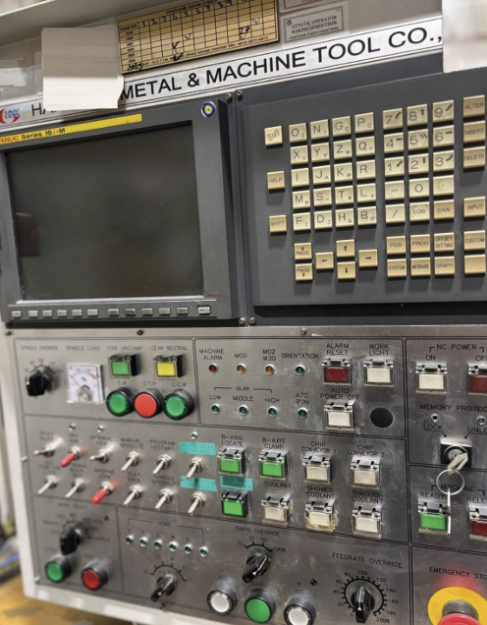

CNC Control UnitFANUC Series 16-M
Machine StatusWorking / Active (No malfunctions)
Machining Capabilities & Travels
Travels (X / Y / Z)1800 mm / 1500 mm / 1300 mm
W-Axis Travel (Boring Spindle)650 mm
Table Size1400 x 1600 mm
Rotary Table Load Capacity7,000 kg (7 Tons)
Table Indexing0.001°
Boring Spindle DiameterØ110 mm
Spindle Speed5 - 2500 rpm
Spindle TaperISO #50 / BT 50
Motor Capacity18.5 / 22 kW
ATC (Automatic Tool Changer)90 Tools
Dimensions & Power Requirements
Machine Weight30,000 kg (30 Tons)
Dimensions (L x W x H)7760 x 8109 x 4100 mm
Power Requirements380 Vac, 50 Hz, 60 kVA
Air Pressure250 NL/min, 5 kg/cm²
*
*
*
