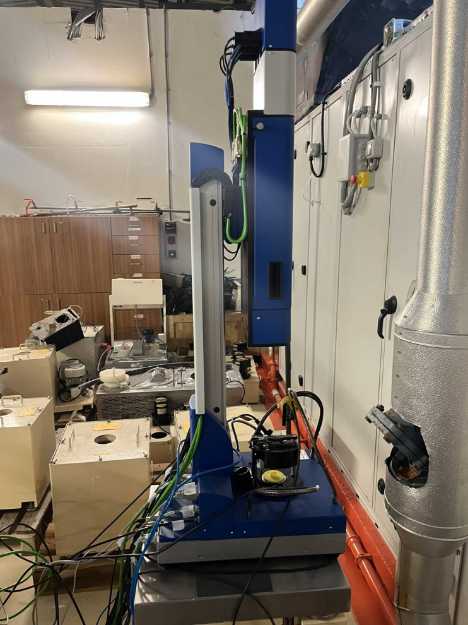

Picture of Trioptics MultiCentering OptiCentric Pro System (2020) – High-Precision Optical Alignment & Metrology System
Picture of Trioptics MultiCentering OptiCentric Pro System (2020) – High-Precision Optical Alignment & Metrology System
Picture of Trioptics MultiCentering OptiCentric Pro System (2020) – High-Precision Optical Alignment & Metrology System
Picture of Trioptics MultiCentering OptiCentric Pro System (2020) – High-Precision Optical Alignment & Metrology System
Picture of Trioptics MultiCentering OptiCentric Pro System (2020) – High-Precision Optical Alignment & Metrology System
Picture of Trioptics MultiCentering OptiCentric Pro System (2020) – High-Precision Optical Alignment & Metrology System
Picture of Trioptics MultiCentering OptiCentric Pro System (2020) – High-Precision Optical Alignment & Metrology System

Trioptics MultiCentering OptiCentric Pro System (2020) – High-Precision Optical Alignment & Metrology System

SKU: ASLTRIOPTIC
Manufacturer part number: TRIOPTIC
Warehouse: Turkey
Show Prices
Industrial-grade 2020 Trioptics MultiCentering metrology system running OptiCentric Pro 4.0 software. Designed for automated sub-micron lens centration error measurement, internal multi-element lens inspection, and precise alignment. Includes complete control units, industrial PC, vacuum system, and UV curing light source. High-demand surplus stock available for immediate global export from Turkey. Open to reasonable offers. Worldwide crating and export shipping from Turkey can be arranged. On-site inspection available by appointment

Inspection:

The majority of the equipment listed for sale is used and may contain defects that are not detectable immediately. Prior to making a purchase, buyers may inspect the property and the inspections should be planned ahead of time. Please contact Stokarti to set an inspection appointment.

Special Guidelines:

All property is offered for sale 'AS IS, WHERE IS'. Regarding the suitability or merchantability of the goods offered for sale, Stokarti makes no warranty, guaranty or representation of any kind, either express or implied. Please be aware that all sales are final once the products are removed.

Statement of Warranty:

The seller guarantees to the buyer that the provided property will match its description. Any claim for misidentification must be submitted before the property is removed. If seller verifies that the asset, property does not match the description of the property, seller will keep the asset and return any payments made. The seller's obligation is limited only to the actual purchase price of the asset.

Available on Stokarti is a high-precision 2020 Trioptics MultiCentering system (OptiCentric Pro series, Serial Number 04-112-0411). Unlike standard passive metrology units, this machine is fully configured as an Active Alignment and Cementing Station. It is engineered specifically for the automated alignment and UV bonding of achromatic doublets and complex multi-element lens assemblies, ensuring a centration error of under 0.1 microns. This surplus stock is in excellent operational condition and ready for immediate dispatch to support precision optics cleanrooms globally.

Active Alignment & Doublet Manufacturing

This system eliminates operator error during the critical cementing process. It features a motorized triple autocollimator array (ACM 1, 2, 3) to continuously monitor the optical axis of both lenses simultaneously. The integrated Piezo controller allows for sub-micron manipulation of the top element, while the integrated Hönle UV light source and foot pedal instantly cure the optical adhesive the moment perfect centration is achieved.

Compatible Machinery

This automated cementing cell pairs ideally alongside the Schneider ALG200 centering and edging machine and Kwang-Jin NC Curve Generator systems to establish a complete, high-yield optical manufacturing workflow from raw shaping to final doublet assembly.

Technical Specifications

  • Brand: Trioptics GmbH
  • System Model Name: MultiCentering (OptiCentric Pro Series - Active Alignment & Cementing)
  • Serial Number / OEM Part Number: 04-112-0411
  • Software Core Version: OptiCentric Pro 4.0.0.32
  • Model Year: 2020
  • Condition: Pre-owned / Surplus (Excellent Operational Condition)
  • Measurement Heads: Motorized Triple Autocollimator Array (ACM 1, 2, 3)
  • Cementing Integration: Hönle bluepoint LED eco UV light source with flexible guides and foot pedal
  • System Control Rack: Includes Trioptics System Controller, Stage Controller, Rotation Controller, Triple LED, and Piezo/Relay Modules
  • Pneumatic Components: Integrated Vacuum Control Unit and Beko Drypoint M air drying system
  • Dispatch Location: Turkey
  • Shipping: Available for global export
*
*
*
